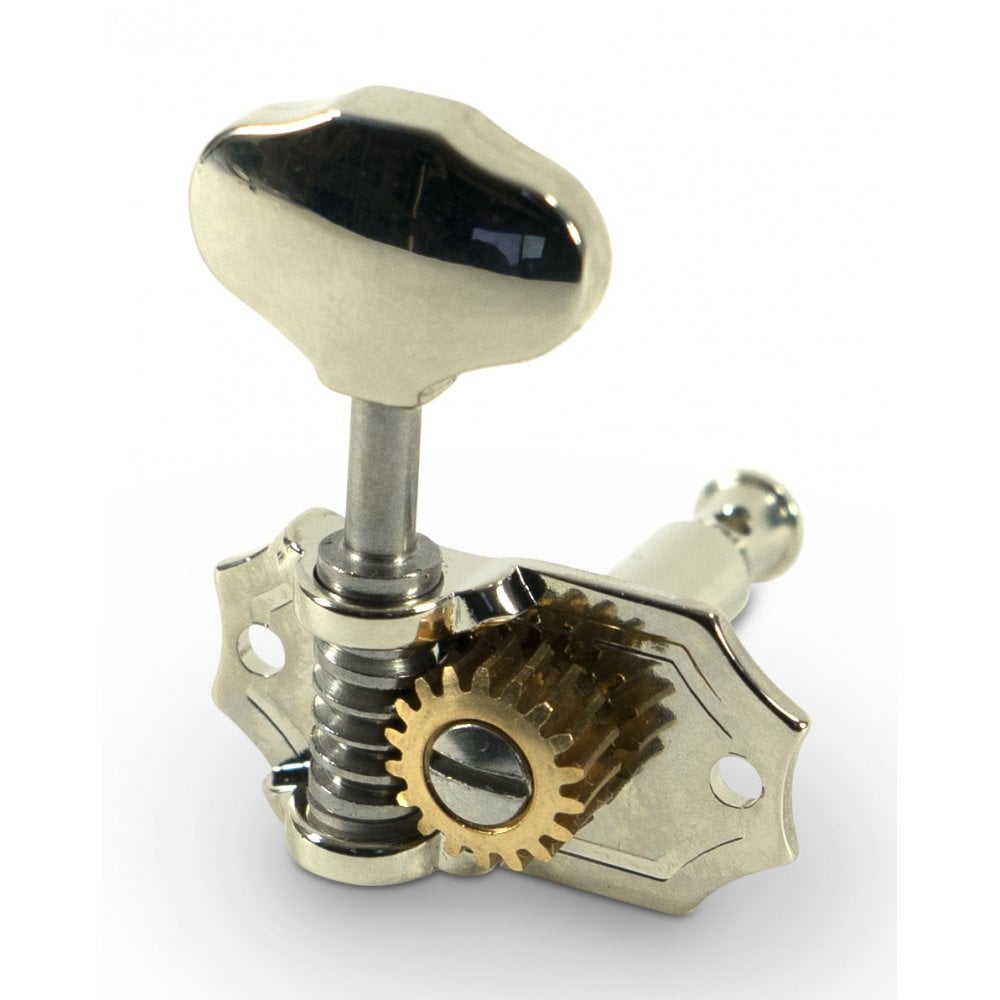

open gear tuning machines KlusonPrestige 18:1 Gear Ratio Open Gear 3+3 Rear Mounted Tuning Machines

open gear tuning machines KlusonPrestige 18:1 Gear Ratio Open Gear 3+3 Rear Mounted Tuning MachinesClassic pre war elegance coupled with state of the art manufacturing and construction to create an exceptional tuner. They are designed to replace most contemporary open gear tuners such as Grover, Schaller, Wilkinson, Waverly and others using a 26 mm centre to centre mounting hole pattern. They feature a precision diecast base, bronze ring gear, stainless worm gear with close tolerance bushings and 18: 1 gear ratio. For solid headstocks with vertical

Classic pre-war elegance coupled with state-of-the-art manufacturing and construction to create an exceptional tuner. They are designed to replace most contemporary open gear tuners such as Grover, Schaller, Wilkinson, Waverly and others using a 26 mm centre to centre mounting hole pattern. They feature a precision diecast base, bronze ring gear, stainless worm gear with close tolerance bushings and 18:1 gear ratio. For solid headstocks with vertical mount.

Base Plate material= Zinc Diecast

Worm Gear material= Stainless Steel

Ring Gear material= Bronze

Gear ratio= 18:1

String Post Orientation= Vertical for drilled Pegheads

String Post Overall length= 1 1/16 in. (27mm w/ domed top)

String Post Diameter= 1/4 in. (6.35mm)

String thru hole location= 13/16 in from baseplate

Mounting hole spacing= 26mm

Configuration= 3 + 3

Mounting hardware included= screws and bushings

Bushing Dimensions= 6.5mm I.D. / 8.75mm O.D.

Bushing Type= Hex head push-in
